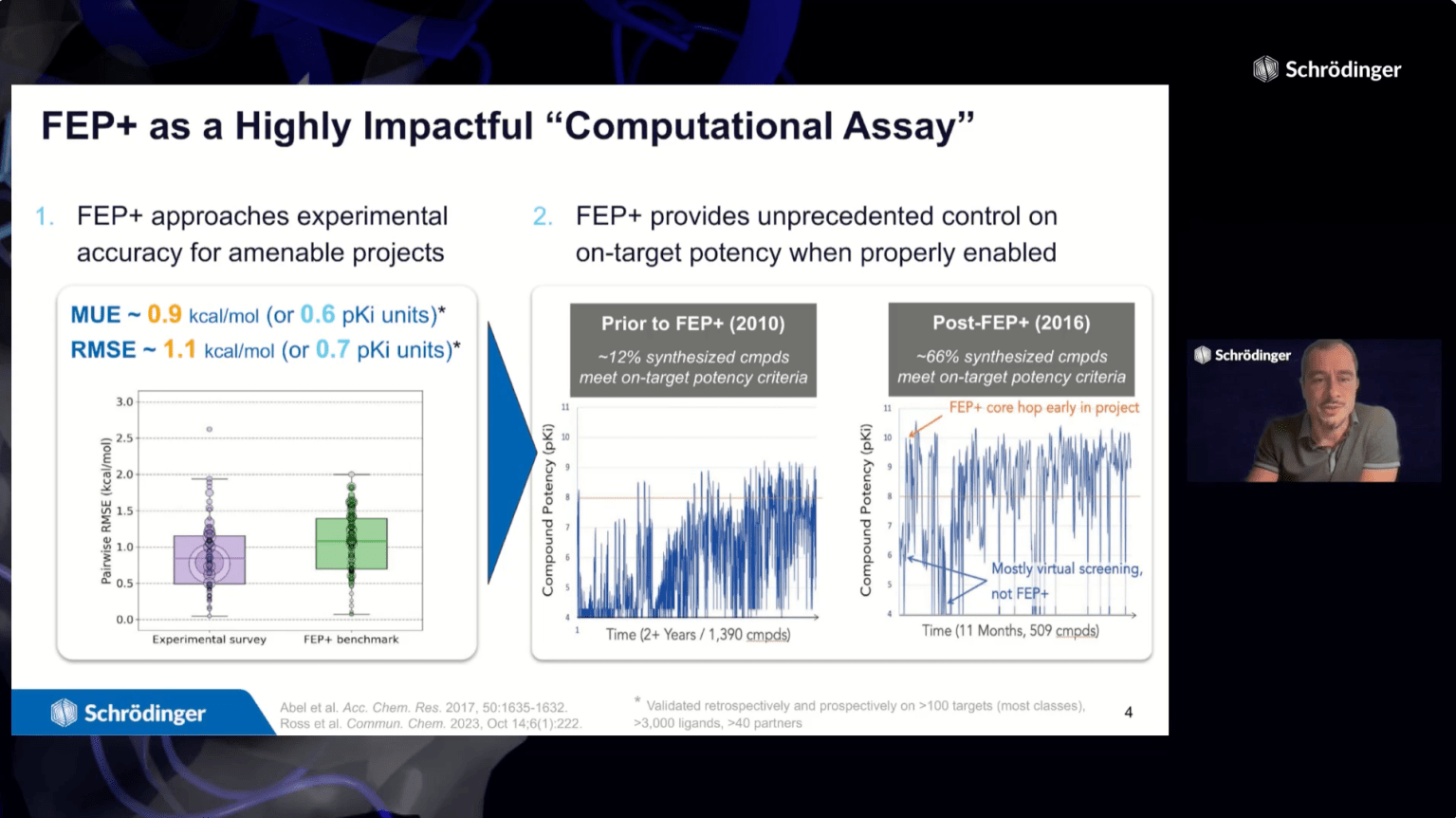

Expediting FEP+ model optimization for challenging systems with a fully automated, machine learning-driven workflow

JUN 25, 2024

Expediting FEP+ model optimization for challenging systems with a fully automated, machine learning-driven workflow

FEP+ is a powerful predictive technology in drug discovery – with applications from hit discovery through lead optimization. A critical first step in deploying FEP+ is to validate and optimize the model for the protein-ligand system of interest. While some systems perform well with out-of-the-box FEP+ settings, others require manual protocol refinement.

In this webinar, we will introduce Schrödinger’s FEP+ Protocol Builder, an automated machine learning workflow for FEP+ model optimization. This workflow is designed for systems with insufficient predictive accuracy using default settings or after initial manual protocol optimization attempts. FEP+ Protocol Builder saves researcher time and increases the chances of successfully enabling FEP+ by efficiently identifying an optimized predictive model for your system of interest.

Join us as we share key features of FEP+ Protocol Builder and highlight case studies that have shown success utilizing the technology to accelerate projects.

Highlights:

  • Overview of FEP+ Protocol Builder technology, which uses an Active Learning workflow to iteratively search the protocol parameter space to develop accurate FEP+ protocols
  • Case studies on effective prospective use of protocols generated by FEP+ Protocol Builder in drug discovery programs
  • Comparison of time efficiency between manual and automated FEP+ optimization
  • Details on requirements and services options to leverage the technology in your own program
  • Overview of the different options to enable FEP+ at almost all levels of structural information for your protein-ligand system of interest

Our Speakers

Jeremie Vendome

Senior Director, Applications Science, Schrödinger

Dr. Jeremie Vendome, senior director of applications science, joined Schrödinger in 2015. He received his PhD from the Ecole Normale Superieure in France and completed his training at Columbia University in the lab of Prof. Barry Honig, where he worked on various problems related to protein-protein interaction energetics and specificity by combining computational approaches and experiments. Prior to joining Schrödinger, Jeremie acquired 10+ years of drug discovery experience both as a computational chemist in the industry and as the head of a CADD collaborative platform at Columbia Medical Center. At Schrödinger, he has held several roles of increasing responsibility and has continuously been at the interface between the company’s latest technological developments and their applications in active drug discovery projects. Most recently, Jeremie has been spearheading Schrödinger’s research enablement initiative, meant to advance drug discovery programs though key stages by providing access to our latest technologies and workflows at scale as a collaborative service.

Jordan Epstein

Product Manager, Schrödinger

Jordan Epstein joined Schrödinger in 2017 after studying Chemistry at New York University. Upon joining Schrödinger as a software developer, he worked on products such as FEP+, Desmond, and LiveDesign. More recently, he transitioned into his role as product manager where he has helped to see FEP+ Protocol Builder to its full release.

Sathesh Bhat

Executive Director, Therapeutics Group, Schrödinger

Sathesh Bhat, Ph.D., executive director in the therapeutics group, joined Schrödinger in 2011. He is responsible for overseeing computational chemistry efforts on internal and partnered drug discovery programs at Schrödinger. Previously, Sathesh worked at both Merck and Eli Lilly leading computational efforts in several drug discovery programs. He obtained his Ph.D. from McGill University, which involved developing structure-based methods to predict binding free energies. Sathesh has co-authored multiple patents and publications and continues to publish on a wide variety of topics in computational chemistry.

2024 Workshop on Free Energy Methods in Drug Design

Conference

2024 Workshop on Free Energy Methods in Drug Design

CalendarDate & Time
  • May 13th-15th, 2024
LocationLocation
  • Leiden, Netherlands

Schrödinger is excited to be participating in the 2024 Workshop on Free Energy Methods in Drug Design conference taking place on May 13th – 15th in Leiden, Netherlands. Join us for a presentation by Robert Abel, Ph.D., Executive Vice President & Chief Computational Scientist at Schrödinger, titled “Expanding the Impact of Free Energy Calculations in Drug Discovery.”

Robert Abel, Ph.D.

Executive Vice President & Chief Computational Scientist

Robert Abel, Ph.D., executive vice president and chief computational scientist, joined Schrödinger in 2009, is responsible for advancing Schrödinger’s computational science platform. He also leads the computational chemistry team within Schrödinger’s drug discovery group. Robert obtained his Ph.D. from Columbia University, where he was awarded NSF and DHS research fellowships. His thesis work with Professor Richard Friesner involved developing methods to quantify the role of solvent in protein-ligand binding. Robert has co-authored multiple patent applications, and continues to publish extensively on a wide variety of topics in computational chemistry.

Release 2024-2

Library Background

Release Notes

Release 2024-2

Small Molecule Drug Discovery

Platform Environment

Maestro Graphical Interface

  • Dynamically display measurements based on selected atoms in the Status Bar
  • Copy fragments from existing molecules in the 3D Workspace and paste them onto selected atom(s) in another molecule
  • Export movies from the Trajectory Viewer with the Workspace resolution
  • Search in the Entry List using regular expressions for greater precision. Simultaneously search for multiple structures
  • Aligned pharmacophore label font with Maestro font preferences
  • Display T-cell receptor annotations in the Structure Hierarchy
  • Automatic synchronization of data point selection in scatter plots with Project Table selections and/or Workspace inclusion
  • Display data from different groups in a single scatter plot

Force Field

  • New OPLS5 Force Field (beta): Significant improvement in the accuracy of cation-pi and ionic group interactions via the addition of limited polarizability in relative binding-FEP+ and Desmond. Available as a new option alongside the default OPLS4

Workflows & Pipelining [KNIME Extensions]

  • Supports the latest version of KNIME (v5.2)
  • The Chemistry external tool node supports a new FEP+ column type that points to fmp files read by the FEP+ reader node

Binding Site & Structure Analysis

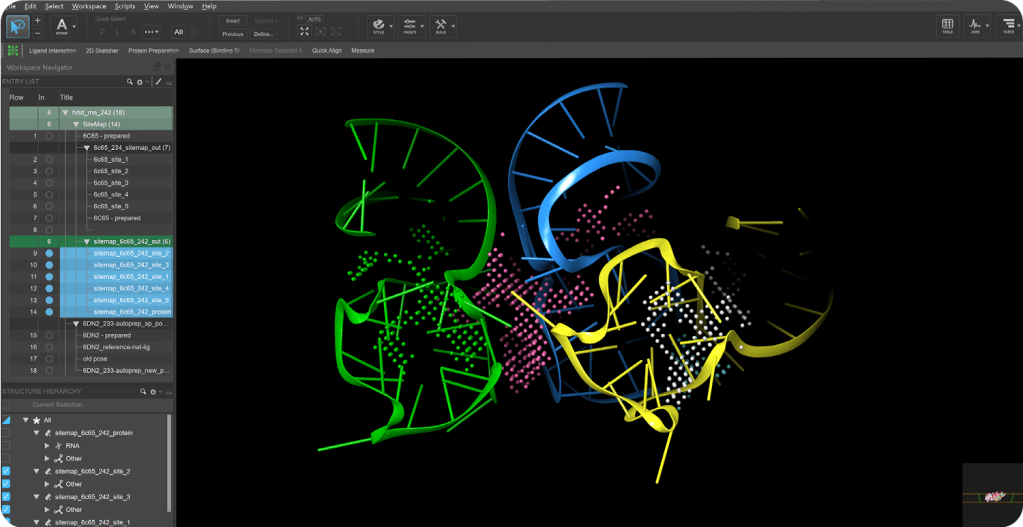

SiteMap

  • More accurate identification of RNA binding sites with 89% of RNA sites in HARIBOSS set now identified as the top-ranked binding site by SiteMap, up from 69% previously (beta)
  • New SiteMap parameters to separate large pockets that are bleeding into one another or across the protein surface and identify smaller distinct sites (command line only)

Mixed Solvent MD (MxMD)

  • Support for membrane systems

Hit Identification & Virtual Screening

Ligand Preparation

Active Learning Applications

  • Enhanced diversity selection in AL-Glide through consideration of up to 3x more compounds by horizontal scaling of diversity selection
  • Significantly improved LigandML prediction throughput in AL-Glide through use of ZMQ (command line only) (beta)
  • Much faster file uploading to the DriverNode in AL-Glide (command line only) (beta)

Ligand Docking

  • Improved pose-prediction and enrichment when docking small molecules into RNA receptors with Glide (beta)

Lead Optimization

FEP+

  • Support setting up Positional Restraints in RB-FEP via FEP+ panel
  • Ability to use OPLS5 for Increased RB-FEP Accuracy
  • Improved Trajectory Management allowing trajectories from multiple edges in PT

Protein FEP

  • Support of Multi-Site Mutations for Thermostability prediction

Constant pH Simulations

  • Support of Lys pKa Calculations with panel support

Solubility FEP

  • Improved Trajectory Visualization
  • Link to Best Practices document
  • Support of Force Field Builder from Web Service

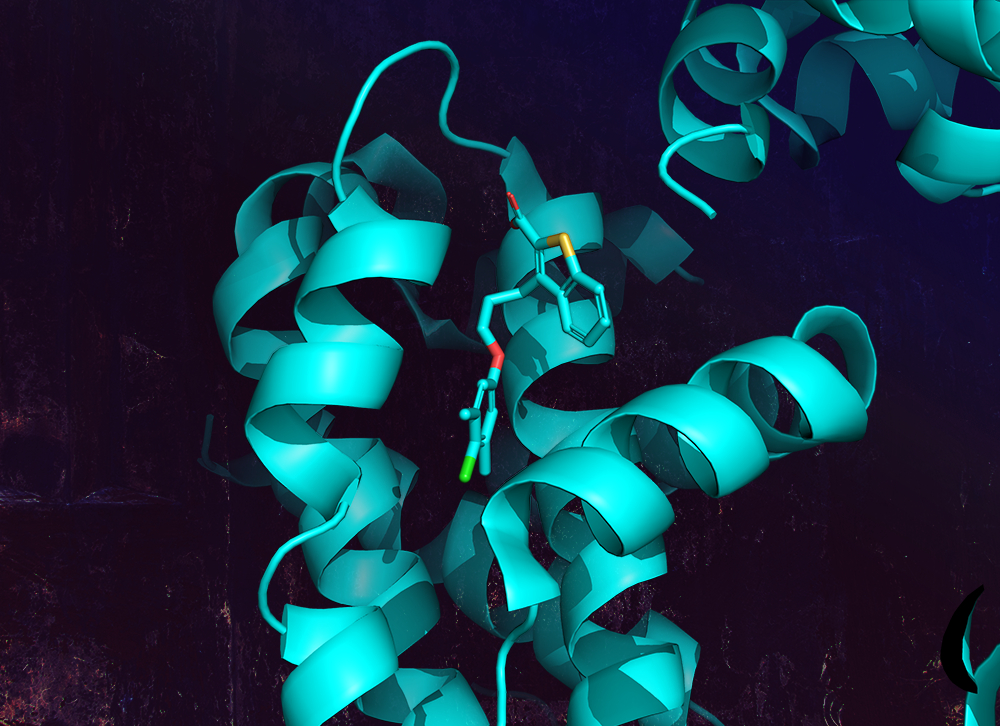

FEP Protocol Builder

  • Use FEP Protocol Builder to quickly identify FEP+ model parameters that optimize FEP+ accuracy using an automated machine learning-driven workflow
    • Free researcher time by letting the FEP Protocol Builder explore parameter space to identify and visualize optimal parameters for FEP+ model performance
    • Find FEP models for challenging systems through efficient exploration of parameter space
    • Proceed with confidence to use FEP+ prospectively in your program
    • Interface to set up FEP protocol optimization calculations with automated assignment of ligands into test/training sets
    • Interface to analyze influence of parameters on FEP model performance and compare protocol performance via FEP+ correlation plots

Quantum Mechanics

  • Perform wave function stability analysis in Jaguar
  • Generate NMR chemical shifts and spectra of 19F isotope with Jaguar Spectroscopy
  • Set multiplicity automatically (multip=2) if an odd number of electrons are found in Jaguar
  • Search for atropisomers using the new rotation_barriers.py script (command line only)
  • More robust and performant E-sol workflow suitable for LiveDesign and command line execution
  • Modify level of theory and basis sets of multiple entries with a right mouse click

Medical Chemistry Design

Ligand Designer

  • New Ring Swapping workflow to optimize lead compounds by exploring alternative ring scaffolds (beta)

Biologics Drug Discovery

  • Added 430 new non-natural amino acids to the library for use in peptide design
  • Interface improvements to speed analysis of protein mutation results produced by residue scanning
  • Analyze structural ensembles such as PIPER docking results and MD trajectories  with Protein-protein interaction analysis panel (open beta)
  • New option to specify one of five numbering schemes, Chothia, Kabat, IMGT, Enhanced Chothia or AHo, when performing antibody structure alignment using the align_antibody.py script

Materials Science

GUI for Quantum ESPRESSO

Product: Quantum ESPRESSO (QE) Interface

  • Input for magnetization from structure data (command line)
  • Results viewer for solid state NMR spectra
  • NEB Convergence Monitor: Display of relative / activation energies
  • Automatic shift of K-point grids for improved convergence
  • Option to compute and visualize potential surfaces in the workspace
  • Phonon Density of States Viewer: Support for dielectric constant
  • Speed-up of NEB calculations with smart management of wave function data

KMC Charge Mobility

Product: MS Mobility

  • Compute KMC Charge Mobility: Charge transfer computed based on center-of-mass distances

Materials Informatics

Product: MS Informatics

  • Formulation ML: Support for input data with missing component names / SMILES
  • Formulation ML: Support for Set2Set and graph-based models and descriptors added
  • Formulation ML: Option to remove highly-correlated descriptors (command line)
  • Formulation ML: Option to control the training set size
  • Formulation ML: Support for classification mode
  • Formulation ML: Feature-importance analysis based on Shapley additive explanations (SHAP)
  • Machine Learning Property: Improvements in prediction models available for download
  • Machine Learning Property: Prediction of oxidation and reduction potentials
  • MD Descriptors: Support for formulations-focused descriptors

Coarse-Grained (CG) Molecular Dynamics

Product: MS CG

  • Coarse-Grained Force Field Builder: Automatically map atomistic systems to Martini particles (command line)
  • Coarse-Grained Force Field Builder: Fit Martini parameters (command line)

Reactivity

Product: MS Reactivity

  • Nanoreactor: Improved default settings
  • Nanoreactor: Speed-up of xTB frequency calculations
  • Nanoreactor: Improved deduplication algorithm for products
  • Nanoreactor: Improved parallelization algorithm
  • Nanoreactor: Option to remove high-energy products
  • Nanoreactor: xTB free energy used to rank-order products
  • Auto Reaction Workflow: Prevention of excessive equilibrium constant calculations from permutations

Microkinetics

Product: MS Microkinetics

  • Microkinetic Modeling: Support for the use of analytical Jacobian
  • Microkinetic Modeling: Option to specify collision factor
  • Microkinetic Modeling: Results returned for cases that did not reach a steady state
  • Microkinetic Modeling: Option to list chemical equations from the input reaction network

Reactive Interface Simulator

Product: MS RIS

  • Solid Electrolyte Interphase: Reaction-template based solution for dynamic simulations of materials systems near battery electrodes

MS Maestro Builders and Tools

  • Density Profile: Visualization of density isosurfaces
  • Complex Builders: Option to clean up geometry using xTB
  • Semicrystalline Polymer: Support for polyvinyl alcohol (PVA)
  • Solvate System: Protocol to manage output with more than 2M atoms
  • Structured Liquid: Protocol to manage output with more than 2M atoms
  • Structured Liquid: Improved and expanded built-in lipid library

Classical Mechanics

  • Thermal Conductivity: Solution to predict thermal conductivity of solids

Quantum Mechanics

  • Adsorption Enumeration: Improved algorithm to define surface atoms
  • Adsorption Enumeration: Heavy-atom filter for reactive atoms
  • Amorphous NMR: Isosurface data available from QM calculations



Education Content

Life Science

  • New Tutorial: Ligand Binding Pose Prediction for FEP+ using Core-Constrained Docking (NEW)
  • New Tutorial: Ligand-Based Virtual Screening Using Phase (large-scale rework from the ground up)

Materials Science

  • New Tutorial: NMR Spectra Prediction
  • New Tutorial: Thermal Conductivity
  • New Tutorial: Solid Electrolyte Interphase Calculations
  • New Tutorial: Building a Semicrystalline Polymer
  • Updated Tutorial: Machine Learning for Formulations
  • Updated Tutorial: Update tutorials for switch to RDKit (affects multiple tutorials)

LiveDesign

What’s New in 2024-2

  • Biologics Support
    • Upload peptides, monoclonal antibodies, bispecific antibodies, Fab, Fab2, Fv, DNA, and RNA
    • Biologics automatically get broken down into their component chains and can be visualized in composite rows
    • View and align sequences in a sequence viewer
    • Upload experimental data and metadata
    • View 3D model results and apply styling
    • View antibody hierarchy in 3D visualizer and select and style at full biologic, domain (ex: VH, CH1), subdomain (ex: HCDR3), or residue level
    • Full support within Models, MPOs, Formulas, Freeform columns, Forms, Tile View, Filters, and Search
    • Search and Filter for Biologics based on the properties of their chains
  • Updated User Management in the Admin Panel
    • See and update all Users’ ACL and details on single page
    • Quickly add and remove multiple users at once
    • Bulk update user roles, projects, license status
    • Create a project and add users, groups, admins to the project on single page
    • Project and Group details pages give clearer statistics on users and access control flow
    • Choose to send or resend a welcome email on updates
    • Sync users between LiveDesign and externally hosted, read-only LDAP, to pre-populate users before their first login
  • One-click to view 3D model results in Maestro: Click a link in a 3D model cell to automatically open Maestro and view the result. Note that this only works in Windows, using Maestro version 24-2; Mac and Linux support are forthcoming in Maestro’s 24-3 release
  • Structure Groupings for the 3D Visualizer
    • Group any number of 3D outputs in a single structure group, beyond the historic Ligand + Protein combination
    • Add custom group titles to change the displayed column title
    • View multiple ligand poses or protein poses in the 3D visualizer content panel
  • Control Display styles in Ligand Designer
    • Style selected atoms, resides, and chains from a new toolbar within the 3D canvas in Ligand Designer
    • Apply custom styling to Proteins and Ligands within a Ligand Designer session
    • Use 3D tools within Ligand Designer, such as export, zoom, and screenshot
  • Complex Filters: Combine filter conditions using AND or OR logical operators
  • Published Limited Assay Columns: Publish limited assay columns so they appear in the Data & Columns tree, and are available for use in published column-as-parameter models, MPOs, and published formulas
  • Pinned Rows: Click a button on a row or a Tile to “pin” the compound to the top of the LiveReport
  • UX Improvements
    • Forms
      • Toggle the number of tiles to show in each row in a Kanban widget
      • Freeform column cells now render larger editing areas in the Matrix Widget when the cells are small
    • Plots
      • Plot can’t be created or edited in read only LRs
      • Delete plots directly from the visualize panel, without opening them first
      • Search for columns in plot axis selection dropdowns
    • Spreadsheet interactions
      • Freeze multiple columns at once via the column menu
      • Double-click on a Freeform column cell to edit its value
      • The Run button for click-to-run models is now displayed as a solid color
      • Right-click on a LiveReport tab to reveal the LiveReport menu
    • 3D Visualizer
      • Downloaded files from the 3D visualizer now show the same labels in Desktop PyMOL instead of hashed values
      • Binding Site Interaction Map is turned off by default when opening a Ligand Designer session
    • Miscellaneous
      • The login page now allows submitting either Single sign-on or username + password credentials
      • Export the Tile View configuration to PPTX using LDClient
      • Archive a model without fixing errors in the model settings
      • The Job Manager gadget table now resizes as the tool is resized
      • Click Help icons in the Create Freeform Column dialog, Create Formula column dialog, and the Define New
      • Multi-Parameter Optimization dialogs to navigate directly to the user manual
      • Click an icon within the Data & Columns Tree LiveReport tab to scroll to the column in the LiveReport
      • Drag and add multiple scaffolds to the R-group enumeration scaffold sketcher
  • TaskEngine workers now scale up when the number of submitted jobs increases
  • The Schrodinger Suite python method “from schrodinger.structure import SDReader” has been deprecated, and scripts should instead call “from schrodinger.structure import StructureReader”

What’s Been Fixed

  • The Landing Page Overview would occasionally fail to show the most recently added compounds, and now correctly shows them
  • Columns that are added to LiveDesign via the Data Integrator are now set to the correct datatype
  • LiveReports no longer show duplicate rows for a Real and a Virtual after uploading experimental data via ACAS
  • LiveDesign now correctly opens the most recently opened Project and LiveReport after logging in
  • Users can now log out of LiveDesign when Single Sign-On is enabled
  • Freeform column picklist options order would previously change, and is now maintained according to the configuration set within the Edit Freeform Column dialog
  • Duplicating a LiveReport with many unpublished assay data points is now up to 6x faster (duplicating LiveReports with fewer unpublished assay data points will experience less of a speed up)
  • Pasting specific LiveReport URL into the browser would occasionally redirect to the Project Picker, and now correctly opens the LiveReport
  • Security
    • CVE-2023-44487 has been patched
    • Sessions cookies are now marked Secure
  • Admin Panel
    • Uploading a file in the Admin Panel now works correctly when the filename is identical to the file that is being replaced
    • The Last Modified Date shown in the Admin Panel’s Protocol page and Protocol List page now correctly updates for all changes to the Protocol
    • The “Last Login” date field within the Admin Panel’s User page now correctly updates
    • Parameterized models could not be modified in the Admin Panel after creation, and now can be modified (e.g., change the title or folder)
  • File Exports
    • Enhanced stereo labels now show in all images in PowerPoint exports
    • Exporting Tile View to PowerPoint now correctly warns the user when attempting to show more than 8 compounds per slide
    • Exporting LiveReports to SDF would sometimes fail if the LiveReport contained click-to-run model columns, and now no longer fails
  • Forms
    • Tiles now render correctly in Tile View widgets, when the Tile View widget is in the same container as another widget
    • Tooltips in Tile View would previously get frozen after displaying R-group decomposition results, and how correctly show data for each cell
    • Tile view tooltips now render correctly-sized R-groups when hovering over a R-group decomposition cell
    • The Forms Entity Image widget now correctly shows the ID of the entity
    • Forms drilldown from a row-per-compound widget to a row-per-pose widget now correctly shows the poses only for the selected compound(s)
    • The Forms Matrix widget now shows the entity image for Generic Entities
  • LDClient
    • A ‘parent_row_key’ has been added to the LDClient RowInfo object within LiveReportResultsMetadata, which identifies which rows are child composite rows in the LiveReport
    • LDClient ldclient.LDClient.refresh_db_constants method and the AboutInfo remaining_read_only_licenses_count field have been deprecated and removed
    • LDClient now correctly returns a LiveReport’s filters, when the filters include a substructure query
    • LDClient’s ModelTemplateVarType enum now includes LIST_INPUT and RDKIT_MOL
    • Scripts calling LDClient occasionally needed to execute a LiveReport, and include a manually programmed sleep to get results. LDClient now includes a method mutate_then_wait, which allows code to wait on actions to be completed before continuing (such as adding rows to a LiveReport)
  • Ligand Designer
    • Ligand name shows up correctly in Ligand Designer, when the LiveReport is in row-per-pose mode
    • Grid files can now be changed for existing Ligand Designer configurations in the Admin Panel
  • Maestro Export
    • LiveReport exports from LiveDesign to Maestro now work correctly when two Real compounds are linked to the same Virtual compound
    • Maestro exports to LiveDesign with published data are now faster
  • Matched Molecular Pairs
    • Previously calculated Matched Molecular Pair analyses have been deleted due to a backwards-incompatible Python library upgrade, and must be re-run
    • The Matched Molecular Pairs tool now shows an error message when large LiveReports fail to complete the matched pairs computation
  • Spreadsheet Interactions
    • Searching by substructure in the active LiveReport will now deselect existing row selections, and select the matching substructures
    • Compound orientations in the sketcher are now saved when adding the compound to a LiveReport, using a scaffold in R-group decompositions, using a scaffold for compound alignment, and using compounds in enumeration
    • The row-per-model toggle is no longer obscured when the visualizer panel is open
    • Searching a LiveReport via the magnifying glass now correctly navigates to the first matching string
    • Calculated properties that appear below the sketcher now truncate long column names to avoid an overlap with the calculated value
    • Attempting to recalculate an archived model would show flashing cells, as if the calculation has been started (despite no calculating being started), and will now show an error message
    • Searching for metadata within assay columns’ Edit Tooltip Content now correctly filters content that does not match the query
    • Copy and Paste coloring rules for R-group decomposition columns
    • Copying a compound into the sketcher via the row menu’s “Use in → Design/Search Sketcher” option will now correctly overwrite any compound within the sketcher
    • Importing a compound multiple times to the sketcher using its ID will now correctly show the compound’s structure
  • Plots
    • Box plots now show a border around selected outlier data points to make them more noticable
    • Scatter plot tooltips now show assay datapoint operators, such as ‘greater than’ and ‘less than’

Training & Resources

Online Certification Courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Other Resources

LiveDesign for Biologics

LiveDesign for Biologics

Your digital biologics design & discovery lab

LiveDesign for Biologics

Digitally design, predict, analyze, and collaborate in a single platform

LiveDesign is a flexible, cloud-based informatics and analysis environment for your biologics discovery team. Streamline workflows with centralized access to all project data (experiment and in silico predictions), cutting-edge computational modeling tools, and collaborative decision-making technology — in a single interface. LiveDesign offers support for a broad range of biological therapeutic modalities.

bg-circle

Power your biologics discovery workflows with a centralized portal

Connect all your data — from sequence to structure to experiment

  • Break down data silos by consolidating in vitro and in silico data into a centralized federated data platform
  • Track decisions and streamline communication across all stages of common biologics discovery workflows, such as multi-hit triage and model-driven predictions

Make data-driven decisions, together

  • Crowdsource ideas and interactively refine design strategies with your colleagues — anytime, anywhere
  • Increase project efficiency by securely and easily sharing data between teams and partners

Identify top candidates faster with in silico discovery tools

  • Fully integrate computational modeling execution, delivery, analysis, and 3D visualization into project workflows
  • Flexibly develop and explore emerging AI/ML technologies with an agnostic snap-in/snap-out API framework


Build live data dashboards for design, analysis, and collaboration

Live data sharing
3D visualization
Customized styling
Biologic format recognition
Experimental data
Computational predictions
Sequence analysis

Related Products

Learn more about the related computational technologies available to progress your research projects.

BioLuminate

Comprehensive modeling platform for biologics discovery

PIPER

A state-of-the-art protein-protein docking program

Prime

A powerful and innovative solution for accurate protein structure prediction

Desmond

High-performance molecular dynamics (MD) engine providing high scalability, throughput, and scientific accuracy

FEP+

High-performance free energy calculations for drug discovery

Training & Resources

Online certification courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Schrödinger デジタル創薬セミナー: Impacting drug discovery programs with large-scale de novo design

FEB 21, 2024

Schrödinger デジタル創薬セミナー: Impacting drug discovery programs with large-scale de novo design

Impacting drug discovery programs with large-scale de novo design

高品質な化学物質の創製をより包括的かつ効果的に可能にする技術の開発は、薬物探索の長年の目標でした。

シュレーディンガーは近年、大規模な合成に注意を払ったde novoデザイン手法(AutoDesigner)と厳密な自由エネルギーに基づくスコアリング手法(Active Learning FEP+)を組み合わせ、小分子の効力と選択性を最適化するためのワークフローの開発を主導しています。この技術の最新の進展では、R-グループの設計を超えてコアの探索に進化し、初期のヒット同定の取り組みや代替系列の発見に拡張されました。

本セミナーでは、重要なデザインの課題を克服し、プログラムを加速させた、 de novoデザイン技術の最新事例を紹介します。



Highlights

  • AutoDesignerと他の一般的なデザイン手法の実際の比較。化学的なスペースの探索、費やされた時間、デザインの目標の達成能力の評価を含む。
  • AutoDesignerを使用したヒット同定中の新しいコアの設計。
  • AutoDesignerを使用したhit-to-leadおよびリード最適化におけるR-グループの設計。
  • 分子接着剤の効力と選択性の向上の例、およびde novoデザインを使用して知的財産権を強化する例。
  • 技術を薬物探索プログラムに適用するための要件とベストプラクティス。

Our Speakers

Pieter Bos, PhD

Principal Scientist II, Schrödinger

Pieter Bos is a principal scientist and product manager of AutoDesigner and De Novo Design workflows. At Schrödinger, his main focus is the research, development and optimization of automated compound design algorithms. Lead scientist for the design and execution of enumerated drug molecule libraries for internal and collaborative drug design projects. He received his Ph.D. in Synthetic Organic Chemistry from the University of Groningen in the laboratory of Prof. Ben Feringa. Prior to joining Schrödinger, he worked as a postdoctoral researcher in synthetic methodology development at Boston University (Prof. John Porco and Prof. Corey Stephenson) and small molecule drug discovery at Columbia University (Prof. Brent Stockwell.).

Sathesh Bhat, PhD

Executive Director, Schrödinger

Sathesh Bhat, Ph.D., executive director in the therapeutics group, joined Schrödinger in 2011. He is responsible for overseeing computational chemistry efforts on internal and partnered drug discovery programs at Schrödinger. Previously, Sathesh worked at both Merck and Eli Lilly leading computational efforts in several drug discovery programs. He obtained his Ph.D. from McGill University, which involved developing structure-based methods to predict binding free energies. Sathesh has co-authored multiple patents and publications and continues to publish on a wide variety of topics in computational chemistry.

Gang Wang, PhD

Principal Scientist II, Schrödinger

Gang Wang is a principal scientist in the therapeutics group at Schrödinger where he is responsible for drug discovery project execution as a medicinal chemist. Prior to Schrodinger, Gang worked at Revolution Medicines and PTC Therapeutics. He received his Ph.D. from University of Texas at Austin.

Release 2024-1

Library Background

Release Notes

Release 2024-1

Small Molecule Drug Discovery

Platform Environment

Maestro Graphical Interface

  • Improved usability for several Project Table dialogs including Change Property, Substructure Count, Add Property, Add Sequential Index Property, Add Standard Molecular Property, Redo Calculation, and Total Surface Area
  • Improved usability of the Find Toolbar by adding a close button and “Search in Progress” indication

Workflows & Pipelining [KNIME Extensions]

  • Stabilized version of the KNIME generic LiveDesign protocols
  • New node for pKa prediction using Epik 7
  • Added support for AB-FEP files to FEP+ reader node

Target Validation & Structure Enablement

Protein Preparation

  • Improved accuracy of ligand ionization/tautomeric state predictions in the Protein Preparation Workflow using ML-enabled Epik by default
  • Ability to optionally provide sequence information via FASTA file when filling in missing loops

Multiple Sequence Viewer/Editor

  • Ability to export sequences and annotations to seqD file

Binding Site & Structure Analysis

Desmond Molecular Dynamics

  • Added Radial Distribution Function (RDF) analyzer in Trajectory Plots

Hit Identification & Virtual Screening

Ligand Preparation

Empirical and QM-based pKa Prediction

  • Improved accuracy in empirical corrections for Macro-pKa from a new ML-based algorithm used by default

Lead Optimization

FEP+

  • Improved functionality of FEP+ Panel-managed trajectories can now be moved out of the FEP+ entry group, to retain it in the project table

Protein FEP

  • Mutation generation will now ignore water molecules for sidechain placement

Solubility FEP

  • Ability to compute hydration free energies from Solubility FEP with useful blood brain barrier penetration correlation: Hydration-only mode is now available from Advanced Options of the Solubility FEP panel

Quantum Mechanics

  • Employ different basis sets by atom in Jaguar Transition Search
  • Predict and view NMR spectra based on DFT chemical shifts and spin-spin couplings
  • Added support for analytic basis sets with high angular momenta including cc-pvXz and def2 basis sets up to QZ
  • Added support for composite 3c-functionals: HF-3c, PBEh-3c, HSE-3c, B97-3c, r2SCAN-3c, and wB97X-3c

Biologics Drug Discovery

  • Improved accuracy in antibody modeling with new curated antibody database that now excludes redundant and/or poor-quality PDB structures
  • Option to export all 1000 unclustered raw poses from PIPER protein docking
  • Report the % humanness of the Heavy and Light chain on the grafted model in Antibody humanization by CDR grafting
  • Export aggregation profile images in png format
  • Report detailed patch characteristics in Protein Patch calculations
  • Easily perform detailed analysis of residue scanning results with new csv file containing mutant descriptions and energies

Materials Science

GUI for Quantum ESPRESSO

Product: Quantum ESPRESSO (QE) Interface

  • Convergence monitor for the nudged elastic band (NEB) calculations
  • Workflow for computing dielectric constant (command line)
  • Support for parallel computation of Phonon calculations (command line)
  • Option to display discrete frequencies from dynamical matrix for phonon DOS
  • Support for phonon calculations with Hubbard U potentials for LDA+U
  • Support for mean square displacement analysis over an existing AIMD trajectory

Materials Informatics

Product: MS Informatics

  • DeepAutoQSAR: Access from the Task menu under Materials Informatics
  • Formulation ML: Machine-learning-based property predictions using chemical formulations
  • Machine Learning Property: Improved machine learning models
  • MD Descriptors: Bond, angle, torsion, and vdW energies computed as descriptors
  • MD Descriptors: Improved efficiency with the MD simulation protocol

Coarse-Grained (CG) Molecular Dynamics

Product: MS CG

  • CG FF Builder: Implicit charge assessment by dielectric constant
  • Automated DPD Mapping: Support for multiple ionization states (command line)
  • Automated DPD Mapping: Support for pre-defined patterns for use in mapping (command line)
  • Support for including CGFF file (*.json) information into other CGFF files

Reactivity

Product: MS Reactivity

  • Schrödinger Nanoreactor: Chemical reaction discovery and analysis module based on AIMD and semiempirical QM (xTB) methods
  • Auto Reaction Workflow: Improved speed in calculating custom rates and Keq

Microkinetics

Product: MS Microkinetics

  • Workflow module for microkinetic modeling of chemical reaction rates

MS Maestro Builders and Tools

  • Complex Enumeration: Support for the use of two ligand libraries as input
  • Complex Enumeration: Option to specify the number of unique ligands
  • Move Selected Atoms: Workspace tool to rotate/translate selected atoms

Classical Mechanics

  • Polymer Crosslink: Option to block formation of specific chemical structures
  • Molecular Deposition: UI update with improved control of adsorbate setup and simulation protocols

Quantum Mechanics

  • TST Rate: Jobs launched to queue

Education Content

Life Science

  • New Tutorial: Ligand-based Screening for Ultra-Large Libraries with Quick Shape and the Hit Analyzer
  • New Tutorial: Designing Out Common ADMET Liabilities using Consensus IFD-MD
  • New Tutorial: Introduction to MD Simulations with Desmond
  • Updated Tutorial: Structure-Based Virtual Screening using Glide

Materials Science

  • New Tutorial: Microkinetic Modeling
  • New Tutorial: Machine Learning for Formulations
  • New Tutorial: Nanoreactor
  • New Tutorial: Modeling Receptor Binding in an Olfactory Protein
  • New Tutorial: Building a Coarse-Grained Skin Model using Martini Force Field
  • Updated Tutorial: Activation Energies for Reactivity in Solids and on Surfaces
  • Updated Tutorial: Molecular Deposition

LiveDesign

What’s New in 2024-1

  • Limit Unrestricted Project Data Visibility: Configure a project so that compounds, data, and models from unrestricted projects and the Global project are not accessible within that project
  • Export Tile View to PowerPoint:
    • Fields defined for the Tile are automatically selected for export
    • The order of fields in the Tile match the order generated in the exported PPTX
    • Choose the number of Tiles (1-8) that should appear on each slide
    • The Compound Structure row with SMILES content is no longer included
  • Forms Improvements
    • Change the styling of Matrix Widget text labels cells with font styling, background colors, and font alignment
    • The Matrix widget will now slightly resize automatically to adapt to different screen resolutions (down to minimum column width of 75 pixels, and a maximum width of 210 pixels)
    • Boolean Freeform column cells now render smaller, more usable buttons in the Matrix Widget
  • Landing Page Improvements
    • Centralize project collateral by adding hyperlinks to key presentations, notes, or papers on a new Project Resources page
    • Tag compounds as Favorites within the Landing Page’s Compound page. Favorited Compounds are visible on Project Overview page
  • Configure Assay Tooltips: Configure what metadata appears within assay tooltips on a per-assay, per-column, or per-LiveReport basis
    • Define pattern matching rules within the Admin Panel for entire assays or specific endpoints to control which metadata shown among all Projects
    • Define LiveReport-specific metadata visibility through the Assay’s column menu
    • Configure what metadata appears in assay tooltip through LDClient
  • 3D Visualizer Improvements
    • Unit cell box can be rendered in the 3D workspace
    • Changing dihedral angle button is moved from the ‘More’ dropdown to the Ligand Designer Edit main tool bar
    • Clicking “X” on 3D window exits Ligand Designer, instead of hiding the panel, just like clicking the “Done Editing” button
    • The pose name that appears in Ligand Designer is the name of the reference file uploaded in ligand designer configuration for explicit Ligand Designer models.
  • Composite Row Improvements
    • Create a new entity or clone an existing entity in Entity Groupings Tool
    • Drag and drop an entity (or a group of entities) off the Entity Groupings Tool table to remove the entries from a relationship, or drag and drop entries within the table from one location to another
    • Create entity relationship metadata columns. List entity relationship metadata columns in the Data & Columns tree, and add entity relationship metadata columns to a LiveReport and view the metadata values in the LiveReport
    • Add Composite Metadata Columns in the Entity Groupings Tool to edit the metadata for new entities
  • The Tasks page within the Admin Panel now permits killing an unlimited number of tasks
  • Retrieve assay metadata from the LDClient python API
  • Generic Entity experiment imports now show a notification when the import is complete, with a link to the import summary
  • User-initiated operations (e.g., Filtering and R-group decompositions) are now prioritized more highly than background activities, such as auto-updating advanced searches, to reduce latency

What’s been fixed

  • Generic Entities
    • A warning message is shown when importing a Generic Entity experiment file with duplicate column headers
    • Importing generic entities through LDClient would fail if the request attempted to update the entity with a specific file, and now importing succeeds
    • Experiments imported for Generic Entities appear the Experimental Assays folder in the data and columns tree
    • The Entity Groupings tool can now quickly load tens of thousands of rows and operations within the tool are more performant
    • Generic entity metadata tooltips now correctly appear in Tile View
    • Tile View now correctly shows file icons for Generic Entities
    • Importing experimental results for Generic Entities previously showed an unnecessary error message dialog, even when importing experimental results was successful, and now no longer shows the error dialog
    • Using the “Show as text” option in the Entity column menu would show distorted icons for Generic Entities, and now correctly show empty values
    • Exporting LiveReports to CSV and XLS previously failed to export Generic Entities that had values for their Lot Properties, and now correctly exports those entities and values
    • Clicking on the Manage Files button within the Import panel would open the File Import dialog, and now opens the Manage Files dialog
    • Entity bank and relationship table are synced up with the current LR when switching LRs.
  • Models
    • Taskengine would occasionally fail to find the Schrodinger Suite when running models, and now correctly finds and mounts the Schrodinger Suite
    • PyMOL session files (.pse) generated by models failed to be truncated around the ligand, are now successfully truncated to reduce their file size and speed up loading times in the 3D visualizer
    • Long-running model tasks results would occasionally fail to get imported to LiveDesign due to network connectivity issues, and now successfully import
    • LiveDesign would incorrectly declare some model tasks as “Failed” if they remained in a TaskEngine queue in the Submitted status too long, and now LiveDesign correctly runs the tasks and imports the results
    • 3D models columns would occasionally return a blank cell, and now always show either “3D not available”, “Failed” or the Methane icon
    • Pending cells in the LiveReport would remain flashing even if the task was killed in the Admin Panel, and now the cells correctly indicate that the task was killed
    • Using the ${LIVEDESIGN_URL} macro in a model would fail to connect to LiveDesign, and now successfully connects to LiveDesign
  • 3D Visualizer
    • The 3D Visualizer’s Reset Custom Styles button failed to reset some styling options applied to proteins, and now correctly resets all styling, including for selected atoms
    • Styles applied in the 3D visualizer are now visible after switching the 3D visualizer to Popout Mode
    • Ligand Designer sessions no longer show a message that zero docking jobs are queued when the docking queue is empty
    • Not all color changes applied to ligands and proteins within the 3D visualizer would be saved, and now color changes are correctly saved
  • Plots
    • The Configure Tooltips dialog for Plots would incorrectly show columns in the Displayed Fields section of the dialog after canceling changes to the tooltip, and now correctly shows columns within the Displayed Fields section
    • Color segment orders within Histogram plots now show colors in the following order: Categorical coloring rules follow the order of the defined rules within the Coloring Rules dialog. Gradient and numerical coloring rules follow the order of the bins is based on the numeric sort order
    • Long entity IDs would previously overflow within plot tooltips, and now wrap within the plot’s tooltip
    • Plots with lots of data can export SVGs in Firefox
    • Box plots now show a border around outlier data points
    • Selecting a box within the box plot would hide the median line, and now the median line is always shown regardless of selection
    • The dialog that configures plot tooltips now correctly shows the columns in the tooltip within the Displayed Fields section
    • The jitter banner appears in front of the legend and not overlapping with each other
  • Filters
    • Dropdown lists previously listed options that were visible in a LiveReport after a Filter was applied, and now list all options for the LiveReport (including any options that have been filtered out)
    • Numeric filters now show a precision of up to 1e-9
  • The LiveReport footer’s selection navigation interface now shows the compound’s preferred ID
  • The LiveReport footer previously read “Entities displayed”, even when there were no Generic Entities within the LiveReport, and now reads “Compounds displayed”
  • Boolean Freeform columns now render the checkmark and X icon correctly in Firefox
  • Substructure and Similarity searching previously used LiveDesign’s absolute maximum number of search results to return, and now correctly use the system-configurable default value for the maximum number of results to return
  • LiveReports that contain columns from a Reaction Enumeration or R-group Enumeration now open more quickly
  • Compounds would occasionally disappear temporarily when added to a large LiveReports, and now correctly remain visible in the LiveReport
  • LiveReports with auto-updating advanced searches no longer attempt to update the report more times than necessary, which conflicted with user activities and slowed them (e.g., R-group decompositions and Filters)
  • Dropdown options were not fully visible within the Parameterized Model dialog, when the model options were defined with a picklist, and now the dropdown options are correctly displayed
  • The Matched Molecular Pair tool now functions correctly while toggling between multiple compound selections in the LiveReport and using the MMP tool
  • Usernames are no longer case sensitive, and usernames with a different case are deduplicated
  • LDClient now successfully exports a LiveReport to CSV when a token is used for authentication
  • Kanban widgets now correctly show picklist Freeform column values that have been applied to existing compounds, but that have been removed from the Freeform column configuration and aren’t available to apply to new compounds
  • Selecting a composite row parent and recalculating a model would trigger a recalculation for all children, and now only recalculates the model for the selected parent
  • Matrix widgets no longer appear broken after duplicating a LiveReport with a Matrix widget that contains unpublished columns
  • Compound orientations in the sketcher are now saved when adding the compound to a LiveReport, using a scaffold in R-group decompositions, using a scaffold for compound alignment, and using compounds in enumeration
  • The date range filter for recently added compounds in Landing Pages now renders correctly
  • Ligand Designer sessions no longer get stuck in a Loading state
  • Column-as-parameter models now provide correctly formatted CSV files when the input column is a 3D column that is tagged as an “Other” type (as opposed to a “Ligand” or “Protein” type), and the lists each input as a separate row
  • Selected compounds are highlighted in green in Heatmap
  • Model Task pages in the Admin Panel now report if a prediction column is missing from the task output
  • The Project Picker would appear after a five-second delay when there are a large number of projects to show, and now the Project Picker appears instantly
  • SDF Exports were limited to 20mb, and now are limited to 4gb
  • LiveDesign would occasionally freeze due to a database lock, and now no longer will freeze

Training & Resources

Online Certification Courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Other Resources

Impacting Drug Discovery Programs with Large-Scale De Novo Design

JAN 25, 2024

Impacting Drug Discovery Programs with Large-Scale De Novo Design

Developing technologies to more comprehensively and effectively enable de novo design of high-quality chemical matter has been a long-standing goal of drug discovery.

To this end, Schrödinger has recently spearheaded the development of workflows that combine large-scale synthetically-aware de novo design methods (AutoDesigner) with rigorous free energy-based scoring methods (Active Learning FEP+) for potency and selectivity optimization of small molecules. Recent developments of this technology move beyond R-group design to core exploration, enabling its expanded application to early stage hit identification efforts and the discovery of back-up series.

In this webinar, we will describe several recent case studies from Schrödinger’s therapeutics group where these de novo design technologies have allowed teams to overcome critical design challenges and accelerate programs.

Highlights

  • Real-life comparison of AutoDesigner versus other common design methods, including an evaluation of chemical space explored, time spent, and ability to meet design goals
  • Design of novel cores during hit identification using AutoDesigner
  • Design of R-groups during hit-to-lead and lead optimization using AutoDesigner
  • Examples of improving potency and selectivity of a molecular glue and using de novo design to strengthen IP
  • Requirements and best practices to apply the technology to your drug discovery programs

Our Speakers

Pieter Bos, PhD

Principal Scientist II, Schrödinger

Pieter Bos is a principal scientist and product manager of AutoDesigner and De Novo Design workflows. At Schrödinger, his main focus is the research, development and optimization of automated compound design algorithms. Lead scientist for the design and execution of enumerated drug molecule libraries for internal and collaborative drug design projects. He received his Ph.D. in Synthetic Organic Chemistry from the University of Groningen in the laboratory of Prof. Ben Feringa. Prior to joining Schrödinger, he worked as a postdoctoral researcher in synthetic methodology development at Boston University (Prof. John Porco and Prof. Corey Stephenson) and small molecule drug discovery at Columbia University (Prof. Brent Stockwell.).

Sathesh Bhat, PhD

Executive Director, Schrödinger

Sathesh Bhat, Ph.D., executive director in the therapeutics group, joined Schrödinger in 2011. He is responsible for overseeing computational chemistry efforts on internal and partnered drug discovery programs at Schrödinger. Previously, Sathesh worked at both Merck and Eli Lilly leading computational efforts in several drug discovery programs. He obtained his Ph.D. from McGill University, which involved developing structure-based methods to predict binding free energies. Sathesh has co-authored multiple patents and publications and continues to publish on a wide variety of topics in computational chemistry.

Zef Könst, PhD

Principal Scientist II, Schrödinger

Zef Könst is a principal scientist in the therapeutics group at Schrödinger where he is responsible for drug discovery project execution as a medicinal chemist. Zef joined Schrödinger in 2020 after working at Novartis and Nurix Therapeutics and has contributed to four compounds in clinical development. He received his Ph.D. from University of California, Irvine under Professor Vanderwal.

Release 2023-4

Library Background

Release Notes

Release 2023-4

Small Molecule Drug Discovery

Platform Environment

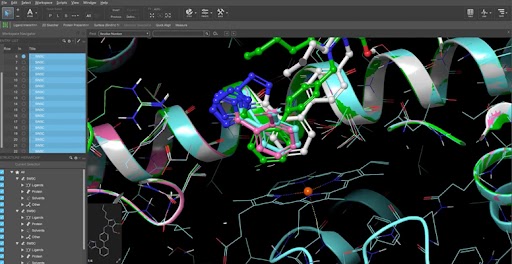

Maestro Graphical Interface

  • Improved functionality and enhanced usability in the new embedded Workspace Sequence Viewer [2023-4]
  • Improved Scatter Plot capabilities: An updated charting tool provides a more intuitive interface, interactive features for data exploration, and extensive customization options for generating scatter plots [2023-4]
  • New Lasso Selection: Draw a freeform selection path with superior precision around specific atoms or regions compared to Marquee Selection [2023-4]
  • New 3D Builder behavior preference to automatically minimize newly added fragments [2023-4]
  • Redesigned ‘Find Toolbar’ boasts an improved user interface with new functionalities such as sequence search and enhanced “Search by SMARTS” with access to the Sketcher [2023-4]

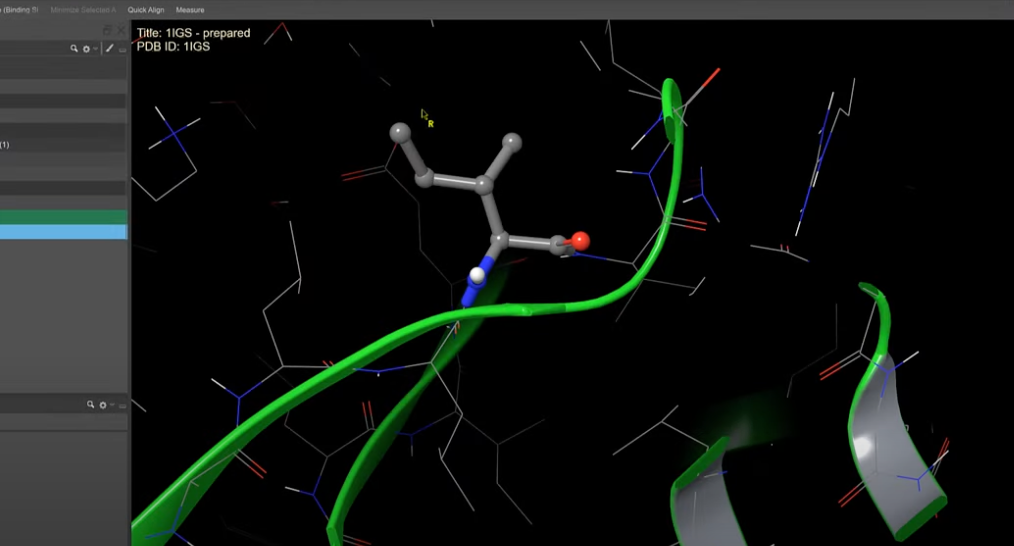

  • Added support for Nonstandard Amino Acids in the 3D Builder [2023-4]
  • Improved user interface for several Project Table dialogs [2023-4]:
    • Combine Properties
    • Copy Property
    • Delete Properties
    • Clear Values
  • Added menu option to move selected entries to the top or end of their current group [2023-4]
  • Enhanced surface visuals through texture mapping, utilizing per-vertex texture coordinates to enrich detail and color vibrancy [2023-4]
  • mmCIF files (.cif) are now treated the same way as PDB files (.pdb) upon import into Maestro, with atoms automatically colored by element for improved visualization [2023-4]

Force Field

  • FFBuilder now uses the QRNN-TB neural network potential as its default reference method. Typical FFBuilder jobs run 3-5X faster [2023-4]

Workflows & Pipelining [KNIME Extensions]

  • LiveDesign connection node supports Single Sign-On and reconnection to hosts running different LiveDesign versions [2023-4]
  • LiveDesign connection node can be connected to the Upload as LiveDesign node [2023-4]
  • LiveDesign settings are stored for several hosts as profiles in KNIME preferences panel [2023-4]

Target Validation & Structure Enablement

AlphaFold Download / Process

  • Added support for processing AlphaFold2 models and PAE files created through ColabFold [2023-4]

Multiple Sequence Viewer/Editor

  • Full release of ‘Align by Family’ panel (removed beta label) [2023-4]
  • Added T-Cell receptors as newest protein family recognized and property annotated with sequence features [2023-4]
  • Support for family aware alignment of T-Cell Receptor sequences to enable downstream applications like homology modeling [2023-4]

Binding Site & Structure Analysis

Desmond Molecular Dynamics

  • Radial Distribution Function (RDF) Panel can now ‘Group’ sites by monomers [2023-4]

Mixed Solvent MD (MxMD)

  • Added support for fragment-size probes [2023-4]

Hit Identification & Virtual Screening

Ligand Preparation

Empirical and QM-based pKa Prediction

  • Improved Lewis structure canonicalization in Epik [2023-4]

Lead Optimization

Ligand alignment

Improved performance of macrocycle alignment for cis- and trans-bond containing macrocycles [2023-4]

FEP+

  • Improved analysis of multiple physical properties in FEP+ panel [2023-4]
    • Small Molecule FEP
      • Relative Solvation
      • Relative Binding
    • Solubility FEP:
      • Hydration
      • Dissolution
    • Protein FEP:
      • Selectivity
      • Thermostability
  • Additional settings in Advanced Options Panel [2023-4]
    • Equilibration time
    • Simulation time is split into solvent/complex/vacuum
  • Improved accessibility for submitting jobs to web services [2023-4]

Constant pH Simulations

  • Trajectory Player: Improvements to the Lambda Dynamics [2023-4]

FEP+ Protocol Builder

  • Ability to run FEP+ Protocol Builder on user defined submaps [2023-4]

Macrocycles

  • Introduced the -parameter command line argument for macrocyclize.py to individually specify parameters [2023-4]
    • The -parameter argument expects a <key>=<value> argument, where <key> is one of several runtime parameters that can be inspected through the -write_param_file option.

Biologics Drug Discovery

  • New method to predict risk of oxidation of methionine residues in proteins (command line) [2023-4]
  • Enhanced antibody humanization by CDR grafting method supports grafting onto frameworks of non-human species (e.g. for murinization) (command line) [2023-4]
  • Updated and expanded default human germline database for antibody humanization [2023-4]
  • Simplified filtering and display of inter-chain and intra-chain disulfide bridges [2023-4]

Materials Science

GUI for Quantum ESPRESSO

Product: Quantum ESPRESSO (QE) Interface

  • Support for RMM-DIIS diagonalization algorithms [2023-4]
  • Option to compute effective charges (command line) [2023-4]
  • Option to merge trajectories from multiple ab initio MD jobs (command line) [2023-4]
  • Surface Energy: Option to add constraints to atom positions [2023-4]
  • Surface Energy: Option to optimize lattice parameters [2023-4]

Optoelectronics

Product: Genetic Optimization (GA)

  • Support for DeepAutoQSAR on Windows and Mac [2023-4]

KMC Charge Mobility

Product: MS Mobility

  • Plot KMC Charge Mobility: Option to select plots to exclude from averaging [2023-4]

Materials Informatics

Product: MS Informatics

  • ML Property: Support for downloadable custom property prediction models [2023-4]
  • ML Property: Optoelectronic properties from custom downloadable models [2023-4]
  • MD Descriptors: MD workflow to compute descriptors [2023-4]

Coarse-Grained (CG) Molecular Dynamics

Product: MS CG

  • Support for Martini force fields refined for proteins [2023-4]
  • Support for ‘tiny’ (T) type bead in Martini with 3.2 Å sigma [2023-4]
  • Support for Martini cyclodextrin particles [2023-4]

Dielectric Properties

Product: MS Dielectric

  • Summary tab in the viewer with organized output information [2023-4]
  • Results estimation tool in the viewer for given density and polarizability [2023-4]

Reactivity

Product: MS Reactivity

  • Auto Reaction Workflow: Module for comprehensive automated reaction analysis [2023-4]

MS Maestro Builders and Tools

  • Elemental Enumeration: Option to select multiple elements from the periodic table [2023-4]
  • Meta Workflows: Support for TDDFT and relativistic Hamiltonians in QM stages [2023-4]
  • Meta Workflows: Support for multi-CPU/GPU setup in Individual stages [2023-4]
  • Meta Workflows: Support for setting additional input files to be passed to a stage [2023-4]
  • Meta Workflows: Standard output stored in the file system for custom stages [2023-4]
  • Solvate System: Workspace action menu (WAM) [2023-4]
  • Structured Liquid: Hydrophilic/Hydrophobic groups assigned as atom properties [2023-4]
  • Structured Liquid: Visualization of arrow from hydrophilic to hydrophobic groups [2023-4]

Classical Mechanics

  • Evaporation: User control over trajectory recording interval [2023-4]
  • MD Multistage: Trajectory (CMS) stored for the stage prior to Average Cell stage [2023-4]
  • Radial Distribution Function: Option to group by monomer [2023-4]

Quantum Mechanics

  • Optoelectronics: Support for PCM solvent setup for redox potential predictions [2023-4]
  • Reaction Energetics Enumeration: Support for multi-CPU subjobs [2023-4]
  • Reaction Workflow: Option to run xTB optimization after conformational search [2023-4]
  • Reaction Workflow: Turnover frequency from the energetic span model [2023-4]
  • Transition Moment Order Parameter: Support for higher excited states [2023-4]
  • Transition Moment Order Parameter: Additional options for excited state setups [2023-4]

Education Content

  • New Tutorial: Molecular Dynamics Descriptors for Machine Learning [2023-4]
  • New Tutorial: Design of Asymmetric Catalysts with Automated Reaction Workflow [2023-4]
  • Update: Dielectric Properties [2023-4]
  • Update: Liquid Electrolyte Properties: Part 1 [2023-4]

LiveDesign

What’s New in 2023-4

  • Landing Page Improvements
    • Tag compounds as Favorites to pin them to the top of the Compounds page
    • Bookmarked LiveReports open in a new browser tab
    • View the total number of compounds, number of virtual compounds, and number of real compounds in a project
    • View recently added Real or Virtual compounds, and filter by date range
  • Reorder SAR scaffolds to change the priority and control which scaffold compounds will match
  • View column header icons for Formula and Freeform column to help identify the column type
  • View an assay’s description in a tooltip when hovering over the column header in a LiveReport
  • Rows that are added to a LiveReport after searching are automatically selected
  • Model/Protocol Metadata UX Improvements
    • Created By” field is added to the protocol/model details page
    • The number of depending models of each protocol is displayed in the protocol listing page
    • A direct link back to the protocol is provided in the model details page
    • Creation Date and Last Modified Date are added as new columns in the protocol/model listing page
    • Easier to access the “clear model results” option
  • Faster LiveReport filters and R-group decompositions, with greater performance increases for larger LiveReports

What’s Been Fixed

  • LiveReports that contain Layouts with one or more Matrix widgets can now be duplicated
  • LiveReports that contain unpublished parameterized models with picklist parameters can now be duplicated
  • Advanced Search
    • Advanced searches that used the Limit Multiple Endpoints treated inverted search conditions and normal search conditions the same, and now correctly distinguish between the two
    • Inverted advanced searches for experimental results with limiting conditions previously returned compounds that had no results, and now only return compounds with defined results
    • Advanced searches on experimental results, that include conditions using the Limit Multiple Endpoints feature, incorrectly returned results that did not match the Limit Multiple Endpoints search criteria, and now return results that match all criteria
  • Uploaded experimental results from files for Generic Entities now appear in the Data & Columns tree
  • Tasks listed in the Admin Panel would occasionally report their status as Submitted or Running, when the task was not actually Submitted nor Running, and now correctly report their status
  • Powerpoint exports now use a grey background for the header column, and use the term Entity instead of Result for the compound image row
  • Dragging the same compound to the sketcher multiple times in a row will correctly show the compound
  • Coloring rules in plots now work correctly when the coloring rules are defined by a multi-select picklist Freeform column
  • Selection navigation in the LiveReport footer now correctly scrolls within Tile View
  • The Ligand Designer previously showed newly added fragments in a green color, and now show atoms using the default coloring scheme
  • Loading a saved scene within the 3D visualizer now correctly styles ligands, based on the styling used when the scene was saved
  • Custom binning within plots is now correctly saved in Forms view
  • Users with the Viewer role no longer see a temporary red authentication error bar after logging in
  • The notification “1 other person viewing this LiveReport” previously appeared long after a user closed the LiveReport, and now correctly shows when other users are viewing the LiveReport

Training & Resources

Online Certification Courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Other Resources

Impacting Drug Discovery Programs with Large-Scale De Novo Design

Webinar

Impacting drug discovery programs with large-scale de novo design

CalendarDate & Time
  • January 25th, 2024
  • 8:00 AM PT / 11:00 AM ET / 4:00 PM GMT / 5:00 PM CET
LocationLocation
  • Virtual
Register

Developing technologies to more comprehensively and effectively enable de novo design of high-quality chemical matter has been a long-standing goal of drug discovery.

To this end, Schrödinger has recently spearheaded the development of workflows that combine large-scale synthetically-aware de novo design methods (AutoDesigner) with rigorous free energy-based scoring methods (Active Learning FEP+) for potency and selectivity optimization of small molecules. Recent developments of this technology move beyond R-group design to core exploration, enabling its expanded application to early stage hit identification efforts and the discovery of back-up series.

In this webinar, we will describe several recent case studies from Schrödinger’s therapeutics group where these de novo design technologies have allowed teams to overcome critical design challenges and accelerate programs.

Highlights

  • Real-life comparison of AutoDesigner versus other common design methods, including an evaluation of chemical space explored, time spent, and ability to meet design goals
  • Design of novel cores during hit identification using AutoDesigner
  • Design of R-groups during hit-to-lead and lead optimization using AutoDesigner
  • Examples of improving potency and selectivity of a molecular glue and using de novo design to strengthen IP
  • Requirements and best practices to apply the technology to your drug discovery programs
icon time 11:00 AM – 12:00 PM EST (1 Hour)

Impacting Drug Discovery Programs with Large-Scale De Novo Design

Our Speakers

Pieter Bos, PhD

Principal Scientist II, Schrödinger

Pieter Bos is a principal scientist and product manager of AutoDesigner and De Novo Design workflows. At Schrödinger, his main focus is the research, development and optimization of automated compound design algorithms. Lead scientist for the design and execution of enumerated drug molecule libraries for internal and collaborative drug design projects. He received his Ph.D. in Synthetic Organic Chemistry from the University of Groningen in the laboratory of Prof. Ben Feringa. Prior to joining Schrödinger, he worked as a postdoctoral researcher in synthetic methodology development at Boston University (Prof. John Porco and Prof. Corey Stephenson) and small molecule drug discovery at Columbia University (Prof. Brent Stockwell.).

Sathesh Bhat, PhD

Executive Director, Schrödinger

Sathesh Bhat, Ph.D., executive director in the therapeutics group, joined Schrödinger in 2011. He is responsible for overseeing computational chemistry efforts on internal and partnered drug discovery programs at Schrödinger. Previously, Sathesh worked at both Merck and Eli Lilly leading computational efforts in several drug discovery programs. He obtained his Ph.D. from McGill University, which involved developing structure-based methods to predict binding free energies. Sathesh has co-authored multiple patents and publications and continues to publish on a wide variety of topics in computational chemistry.

Zef Könst, PhD

Principal Scientist II, Schrödinger

Zef Könst is a principal scientist in the therapeutics group at Schrödinger where he is responsible for drug discovery project execution as a medicinal chemist. Zef joined Schrödinger in 2020 after working at Novartis and Nurix Therapeutics and has contributed to four compounds in clinical development. He received his Ph.D. from University of California, Irvine under Professor Vanderwal.

Register

Release 2023-3

Library Background

Release Notes

Release 2023-3

Small Molecule Drug Discovery

Platform Environment

Maestro Graphical Interface

  • Apply ribbon and cartoon styling on selected entries  [2023-3]
  • Improve visualization of interactions crossing Periodic Boundary Conditions [2023-3]
  • Seamlessly copy and paste data from the Project Table into external applications including spreadsheets, enabling efficient data transfer and analysis [2023-3]
  • Trajectory Player [2023-3]
    • View trajectories from lambda dynamics calculations such as those from the constant pH workflow
    • Navigate frames in trajectory visualization easily using keyboard arrow keys
  • 3D Builder [2023-3]
    • Access Builder Behavior options from the 3D Builder palette
  • Interactively mutate native nucleotides in the Workspace, including between DNA to RNA and RNA to DNA nucleotides [2023-3]
  • Enhanced “Save Project As” functionality with Windows-only UX improvements [2023-3]
  • Maestro to PyMOL connection [2023-3]
    • Streamline the integration of WaterMaps with PyMOL
    • Include Maestro Scene “Description” as a PyMOL Message for better scene management
  • Maestro to LiveDesign connection [2023-3]
    • Seamlessly integrate between Maestro and LiveDesign with the new Mapping Manager. Easily rename property mappings and eliminate the issue of cluttered names when creating variations. Save and share mappings using the direct import and export feature.

Job Control

  • Smart distribution jobs in Job Server now check license availability, eliminating risk of license exhaustion [2023-3]

Workflows & Pipelining [KNIME Extensions]

  • Streamline the login process with the LiveDesign connection node using Single Sign-On (SSO) tokens [2023-3]

Target Validation & Structure Enablement

Protein Preparation

  • Optionally use custom PFAM databases in pfam_driver.py [2023-3]
  • Import structures into Coot with standard residue names from protein preparation’s PDB output. The Maestro output retains protonation-specific residue naming, i.e HIP/HID/HIE instead of HIS [2023-3]
  • Significantly improved performance of Protein Preparation including the Interactive Optimizer for systems of 90,000 atoms or more [2023-3]

Multiple Sequence Viewer/Editor

  • Benefit from speed and accuracy improvements in protein/nucleic acid structure alignment from replacing the previous SKA aligner with the CEAlign algorithm [2023-3]
  • Download structural models directly from AlphaFold2 by providing a UniProt ID [2023-3]

IFD-MD

  • Design out common ADMET liabilities using the new IFD-MD workflow (Beta). Predict complex structures of a ligand bound to CYP2D6, CYP3A4, PXR, or hERG [2023-3]

Hit Identification & Virtual Screening

Ligand Preparation

Empirical and QM-based pKa Prediction

  • Benefit from improved accuracy with the addition of several hundred more data points in the Macro-pKa training set [2023-3]

Active Learning Applications

  • Adjust equilibration simulation times and complex restraint options in Active Learning-FEP [2023-3]
  • Connect to ongoing GraphDB runs when restarting Active Learning-FEP jobs [2023-3]
  • Generate a final Maestro file that contains all ligands with FEP data and the corresponding endpoints [2023-3]

Shape Screening

  • Screen up to tens of billions of compounds quickly and efficiently with the new Quick Shape ligand-based screening workflow [2023-3]

ABFEP

  • Fit torsions on the fly via FFBuilder for FEP+ Web Services [2023-3]

Lead Optimization

FEP+

  • Fit torsions on the fly via FFBuilder for FEP+ Web Services [2023-3]
  • Support linker enumeration of compounds with symmetrical R-groups [2023-3]

Constant pH Simulations

  • Full-featured release of constant pH simulations [2023-3]
  • Improved analysis of constant pH simulations for protein pKa calculations [2023-3]
    • Automatically write constant pH trajectories specific to each pH
    • View trajectories from lambda dynamics calculations such as those from the constant pH workflow

Solubility FEP

  • Fit torsions on the fly via FFBuilder for FEP+ Web Services [2023-3]

Quantum Mechanics

  • Predict conformation-dependent IR and VCD/ECD spectra using an automated workflow within the new Jaguar Spectroscopy product [2023-3]
  • Download importable Jaguar-formatted basis sets from Basis Set Exchange [2023-3]
  • Access dynamic scans from the Relaxed Scan panel [2023-3]
  • Access the ΔSCF method and a script to prepare ΔSCF input on the command line [2023-3]

Semi-Empirical Quantum Mechanics

  • Parallelize batch and individual xTB calculations with OpenMP [2023-3]

Biologics Drug Discovery

  • Protein Linker Design Panel: Automatically detect and populate terminal residue and corresponding distances for improved usability [2023-3]

Materials Science

GUI for Quantum ESPRESSO

Product: Quantum ESPRESSO (QE) Interface

  • Quantum ESPRESSO: Upgrade to Quantum ESPRESSO 7.2 [2023-3]
  • Quantum ESPRESSO: Support for Car-Parrinello MD (cp.x) (command line) [2023-3]
  • Quantum ESPRESSO: Undo for atom reordering in NEB setup [2023-3]
  • Quantum ESPRESSO: Support for data analysis for 3D-RISM (pprism.x) (command line) [2023-3]
  • Quantum ESPRESSO: NEB Energy reported in Project Table [2023-3]
  • Quantum ESPRESSO: Calculation and plot of Raman spectra [2023-3]
  • Quantum ESPRESSO: Option to reduce scratch disk space requirement (command line) [2023-3]
  • Quantum ESPRESSO: Faster job launch for large structures [2023-3]
  • Surface Energy: Workflow module to compute surface energy [2023-3]

Materials Informatics

Product: MS Informatics

  • Machine Learning Property: Warning for molecular weight outside the model’s range [2023-3]
  • Machine Learning Property: Viscosity prediction for molecular liquids [2023-3]

Dielectric Properties

Product: MS Dielectric

  • Complex Permittivity: Improved assignment algorithm for CPU and GPU subjobs [2023-3]

MS Maestro Builder and Tools

  • Square pyramidal geometry option from complex builders [2023-3]
  • Extract Clusters: Jobs launched to queue [2023-3]
  • Extract Clusters: Option to extract single molecules [2023-3]
  • Meta Workflows: Option to set up implicit solvent in the QM stages [2023-3]
  • Meta Workflows: Support for a workflow-splitter stage [2023-3]
  • Meta Workflows: Support for workflow-split by polymer builder stage [2023-3]
  • Meta Workflows: Support for workflow-split by disordered system builder stage [2023-3]
  • Meta Workflows: Support for workflow-combine stage following a workflow-split [2023-3]
  • Meta Workflows: Incorporation of all structures from each stage [2023-3]
  • Meta Workflows: Built-in stage for Extract Clusters [2023-3]
  • Meta Workflows: Built-in stage for Conformational Search [2023-3]
  • Meta Workflows: Built-in stage for Evaporation [2023-3]
  • Meta Workflows: MD trajectories saved by default for single stage workflows [2023-3]
  • Meta Workflows: Preceding stage set as parent by default for a new stage [2023-3]
  • Query Bonds: Options to selectively show bonds through periodic boundaries [2023-3]
  • Solvate System: Advanced builder for a solvated systems with 100K+ atoms [2023-3]

Classical Mechanics

  • Barrier Potential for MD: Tool to set up repulsive barriers for MD simulations [2023-3]
  • Electrolyte Analysis: Support for polyatomic ions [2023-3]
  • Evaporation: Default length for each MD stage set as 20 ps [2023-3]
  • Molecular Deposition: Improved simulation speed [2023-3]
  • Molecular Deposition: Support for repulsive potential barrier [2023-3]
  • Polymer Crosslink: Image export from the viewer with 300 dpi [2023-3]

Quantum Mechanics

  • Reaction Workflow: Support for post-MacroModel XTB optimization [2023-3]
  • Reaction Workflow: Check to avoid non-minimum stationary states [2023-3]
  • Transition Moment Order Parameter: Workflow module to compute order parameter based on transition dipole moment [2023-3]

Education Content

  • New Tutorial: Applying Barrier Potentials for Molecular Dynamics Simulations [2023-3]
  • New Tutorial: Building Solvated Systems [2023-3]
  • New Tutorial: Dynamic Relaxed Coordinate Scans [2023-3]
  • New Tutorial: Calculating Transition Dipole Moments (TDM), TDM Distributions, and Order Parameter [2023-3]
  • Update: Molecular Deposition [2023-3]
  • Update: Modeling Surfaces [2023-3]
  • Update: Polymer Electrolyte Analysis [2023-3]

LiveDesign

What’s New in 2023-3

  • Assay Viewer Tool enhancements
    • Filter data by experiment date
    • Highlight cells in the LiveReport that match data in the Assay Viewer
    • Use keyboard arrow keys to navigate rows
    • Select multiple rows at once
  • Coloring Rules: Quickly transfer coloring rules from any column to any other column by copying and pasting coloring rules through the column menu
  • Ligand Designer: Convert a Parameterized Glide Model to an implicit Ligand Designer configuration, for example with FEP+ poses uploaded from Maestro
  • Maestro Export Enhancements
    • Map Maestro to LD properties to streamline frequent exports
    • Log in with single sign-on
    • Log in once and reuse the session across multiple export actions
  • UX Improvements
    • 3D Visualizer
      • Pi-pi interactions are shown by default within the 3D visualizer
    • Experimental Data Handling
      • Add hyperlinks to Assay Tooltips to quickly navigate to any website
    • General LiveReport Improvements
      • Quickly navigate to selected compounds by using new navigation buttons in the LiveReport footer
      • Find LiveReports more quickly through the LiveReport Picker, which opens the most recently accessed folder
      • Filters now shows a yellow notification bar after making any change
      • Notification bars now include a ‘x’ button to remove the notification
      • Close all open LiveReports by clicking a new “Close All” option in the LiveReport menu
    • Landing Pages
      • Hyperlinks in the Landing Page automatically open in a new tab
      • The Landing Page’s “Recently Commented Compounds” list now include a hyperlink to quickly navigate to the compound’s detail page
    • Plots
      • Move the compound image within plot tooltips
      • Box plots now show a solid blue color for each box
      • View accurately scaled plot overlays when the axis is set to logarithmic scale
    • Search
      • Search the active LiveReport for multiple IDs at once and delete multiple IDs
      • Filter GPUSimilarity search results with computed property thresholds
      • A clear button is available to reset the list of IDs in Search by ID
      • Searches within the Data & Columns tree now span across folders and column names to find matches, rather than looking for matches only within a continuous folder name or column name
    • Quickly select Experiment Protocols within the Generic Entity import UI with a new typeahead suggestion

What’s been fixed

  • Structure searches now correctly use the sketched structure after navigating between LiveReports and Landing Pages
  • Parameterized models that use MPOs as input now calculate when the MPO does not have a score
  • The Assay Viewer Tool can not longer delete Freeform column data
  • Compounds that get added to LiveReports with R-group decompositions now have their decomposed R-groups correctly colored without hard-refreshing the LiveReport
  • The Admin Panel Tasks list and Task Details Page now show the correct LiveReport ID that launched the task, after compounds are copied from one report to another and the model is recalculated
  • The Apply Template dialog now denotes which templates belong to the Global project, and lists the templates in alphabetical order
  • The Structure Processing UI within the Admin Panel shows structures more quickly
  • The Structure Processing interface within the Admin Panel now shows a loading indicator when uploading a processing file
  • Forms widgets now show a hammer and wrench icon to quickly access the Ligand Designer
  • Plots within Forms now show a tooltip when expanding the legend
  • The column header’s dropdown button is now visible after selecting multiple columns that extend beyond the screen width
  • Searching the LiveReport via the magnifying glass will now correctly scroll to results when the LiveReport has frozen rows
  • The Add and Change Model pages within the Admin Panel now list protocols alphabetically within the Parent Protocol dropdown
  • Navigating to a URL within the User Manual will correctly redirect to the User Manual page after logging in
  • Forms with long titles no longer alter the Form Toolbar’s alignment
  • Plot tooltips now permit reordering the list of properties
  • The LiveReport Picker UI is now consistent between Firefox and Chrome, and no longer highlights text after selecting multiple LiveReports via Shift+Click or Ctrl+Click (Cmd+Click on Mac)
  • The Tile view scroll bar no longer changes size while scrolling
  • Clicking on the Project Name in the upper left hand portion of the user interface will now open the Project Selection dialog
  • Freeform column descriptions can now be deleted when configuring a Freeform column
  • The Column Management panel now indicates which groups contain both visible and hidden columns
  • Tile view now shows and hides stereo annotations when using the “Show Stereo Annotations” toggle
  • Searching the LiveReport via the magnifying glass will now show results after filters conditions are removed
  • Password resets no long fail, which prevented password resets and adding new users
  • LiveReports that contain Layouts with one or more Matrix widgets can now be duplicated
  • Ligand Designer sessions no longer show a message that zero docking jobs are queued when the docking queue is empty
  • Uploaded experimental results from files for Generic Entities now appear in the Data & Columns tree
  • Templates from the Global project can no longer be overwritten from another project
  • Columns from unpublished Maestro uploads and file uploads of small molecules no longer appear in the Data & Columns tree
  • Reactions will now show the reaction image, and successfully compute, after a reaction is selected via double-clicking

Training & Resources

Online Certification Courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Other Resources

Release 2023-2

Library Background

Release Notes

Release 2023-2

Small Molecule Drug Discovery

Platform Environment

Maestro Graphical Interface

  • Added support for interactive nonstandard protein residue mutation via the Workspace context menu [2023-2]
  • Save up to 5K resolution GIFs (Workspace -> Animate) [2023-2]
  • Reduce unexpected visual clutter with new preference to limit the number of atom labels [2023-2]
  • Maestro to PyMOL connection [2023-2]
    • Create a simple PyMOL movie from Maestro scenes
  • Maestro to LiveDesign connection [2023-2]
    • Connect to LiveDesign servers with new access point and connection status indicator
    • Retain and reuse single sign on (SSO) tokens to streamline the login process
    • Benefit from a streamlined process of pushing Maestro data into LiveDesign via the Export panel
  • Export Structures – New option to export MD-ready structure / trajectory to CMS file [2023-2]
  • New “Show Atom Properties (beta)” panel [2023-2]
    • List multiple atom properties for selected atoms
    • Display SMARTS/SMILES patterns for contiguous selected atoms, including the SMARTS index of the hovered-over atom

Workflows & Pipelining [KNIME Extensions]

  • Includes the latest version of KNIME [2023-2]
  • Improved usability of the Extract Properties node configuration panel [2023-2]
  • Updated LiveDesign nodes and protocols: [2023-2]
    • Adaptable input column checking of the LiveDesign input node
    • KNIME protocol section to install extra KNIME extensions is more robust

Target Validation & Structure Enablement

Protein Preparation

  • Bond orders and charges can now either be re-assigned or only added to ligands and residues with missing bond orders [2023-2]

Protein X-Ray Refinement

  • Improved robustness when running Phenix/OPLS [2023-2]
  • New plots to inspect the best refinement statistics from Phenix/OPLS weight scans [2023-2]
  • Phenix/OPLS weight scan automatically choses a near-optimal combination of refinement parameters [2023-2]

AlphaFold Download / Process

  • Downloaded AlphaFold structures are returned with an automatically created heatmap of the PAE matrix [2023-2]
  • Processed AlphaFold structures can now be optionally capped and the pLDDT threshold changed [2023-2]

Multiple Sequence Viewer/Editor

  • New ability for the detection and annotation of Vernier zone residues in antibodies [2023-2]

IFD-MD

  • Added visual indicator when the target ligand is missing torsional parameters [2023-2]

Desmond Molecular Dynamics

Improved plotting for Trajectory Plots [2023-2]

Hit Identification & Virtual Screening

Ligand Preparation and Conformation Generation

  • Full support for Epik 7 pKa predictions within the LigPrep interface and command line invocation [2023-2]

Empirical and QM-based pKa Prediction

  • Conjugate acid/base labels are now included in the Epik 7 log file [2023-2]

Hit Analysis

  • Release of the new Hit Analysis interface to streamline interactive analysis and selection of hits from virtual screening campaigns based on molecular properties, ligand feature locations, and shape alignments [2023-2]

Active Learning Applications

  • Added ability to train on preexisting FEP data for relative and absolute AL-FEP [2023-2]
  • Added histogram of compounds prioritized by machine learning for relative and absolute AL-FEP [2023-2]
  • Modified default machine learning settings to improve out-of-the-box performance of relative and absolute AL-FEP [2023-2]

ABFEP

  • New capability for fast filtering of inactive ligands to dramatically improve ABFEP throughput [2023-2]

Lead Optimization

Macrocycles

  • Improved atom mapping in FEP+ maps for macrocycles [2023-2]

FEP+

  • New functionallity to auto-populate state populations in the FEP+ interface [2023-2]
  • Improved reporting of results in a single column (val ± err) in the overview tab of the FEP+ interface [2023-2]
  • Option to automatically merge force field parameters generated during an FEP+ job with those defined in your Maestro preferences [2023-2]
  • Option to select alternative water models for Relative Binding FEP+ via Advanced settings [2023-2]
  • Fast filtering of inactive ligands to dramatically improve ABFEP throughput [2023-2]
  • Improved atom mapping in FEP+ maps for macrocycles [2023-2]

Protein FEP

  • Ability to simultaneously predict protein thermostability with every protein/ligand selectivity simulation [2023-2]
  • Option to interactively edit perturbation topologies for protein residue mutations in FEP+ interface [2023-2]

Constant pH Simulations (Beta)

  • Greatly improved accuracy in protein pKa predictions through improved sampling of the physical end states of titratable residue side chains in FEP+ [2023-2]

Quantum Mechanics

  • New ability to plot excited state energies in rigid and relaxed coordinate scans [2023-2]
  • Support for alignment based on uniform scaling in the VCD/IR spectrum_align utility [2023-2]

Semi-Empirical Quantum Mechanics

  • Capability to use GFN2-xTB from within Jaguar and in Jaguar-based workflows [2023-2]

Biologics Drug Discovery

  • Improved protein descriptor calculation throughput with ability to run in parallel over multiple CPUs [2023-2]
  • Up to 5x speedup in protein surface calculations [2023-2]
  • Modeling of single-chain Fvs is now incorporated into the antibody structure-prediction interface [2023-2]
  • Modeling of F(ab)2 formats is now integrated into the antibody structure-prediction interface [2023-2]
  • MSV is now accessible directly from the protein-protein docking interface [2023-2]
  • Selected entries in antibody database management interface can now be exported to MSV and Maestro [2023-2]

Materials Science

GUI for Quantum ESPRESSO

Product: Quantum ESPRESSO (QE) Interface

  • Quantum ESPRESSO: Reduced disk usage with hybrid functionals [2023-2]
  • Quantum ESPRESSO: Option to import only the final structure in QE import GUI [2023-2]
  • Quantum ESPRESSO: Automatic q-point mesh setup with hybrid functional [2023-2]

Transport Calculations via MD simulations

Product: MS Transport

  • Diffusion Coefficient Viewer: Visualization of atoms selected for diffusion tracing [2023-2]
  • Viscosity: Expanded range of shear stress available for analysis [2023-2]

Materials Informatics

Product: MS Informatics

  • Machine Learning Property: Report of entries with failed predictions if any [2023-2]
  • Machine Learning Property: Density prediction for molecular liquids [2023-2]
  • Machine Learning Property: Models to measure uncertainties from the predicted properties [2023-2]

Coarse-Grained (CG) Molecular Dynamics

Product: MS CG

  • CG FF Builder: Better defaults for convergence [2023-2]
  • CG FF Builder: Option to set initial values [2023-2]
  • CG FF Builder: Option to save the force field file in viewer [2023-2]

Dielectric Properties

Product: MS Dielectric

  • Complex Permittivity: Option to adjust the length of dipole moment sample extracted from the source trajectory (command line) [2023-2]

MS Maestro Builders and Tools

  • Crystal: Edit option for lattice parameters when importing PDB without them [2023-2]
  • Manipulate Cell: Option to take multiple entries as input for selected operations [2023-2]
  • Meta Workflows: Support for molecular QM simulation stages [2023-2]
  • Meta Workflows: Option to compute ESP charges for subsequent stages [2023-2]
  • Semicrystalline Polymer: Improved robustness and speed for building semicrystal interface [2023-2]

Classical Mechanics

  • Crystal Morphology: Improved pop-up guideline for setting a proper input cell size [2023-2]
  • Improved UI to select atoms for substrate restraints in MD-based workflow panels [2023-2]
  • Droplet: Option to take existing MD simulation trajectory as input [2023-2]
  • Droplet: Support for built-in and custom solvents for contact angle prediction [2023-2]
  • Electroporation: Workflow module to simulate and assess membrane electroporation [2023-2]
  • Evaporation: Redesigned UI for the workflow setup panel [2023-2]
  • Evaporation: Support for evaporating multiple solvents [2023-2]
  • Evaporation: Added flexibility to evaporation zone definition [2023-2]
  • Evaporation Results: Load structures from one or more iterations into the Project Table [2023-2]
  • MD Multistage: Support for negative external electric field [2023-2]
  • MD Multistage: Option to remove center of mass velocity [2023-2]
  • Stress Strain: Support for sinusoidal loading (command line) [2023-2]

Quantum Mechanics

  • Adsorption Enumeration: Option to set bridging and hollow sites for adsorption [2023-2]
  • Complex Enumeration: Report of the ligand exchange stability in Project Table [2023-2]
  • Prediction of singlet excitation energy transfer rates (SEET) (command line) [2023-2]

Education Content

  • New Tutorial: Calculating Voltage Curves on Spinel Intercalation Compounds [2023-2]
  • New Tutorial: Machine Learning for Ionic Conductivity [2023-2]
  • New Tutorial: Electroporation [2023-2]
  • Update: Evaporation [2023-2]
  • Update: Droplet Contact Analysis [2023-2]
  • Update: Viscosity [2023-2]
  • Update: Machine Learning Property Prediction [2023-2]

LiveDesign

What’s New in 2023-2

Kubernetes versions of LiveDesign include:

  • Composite Rows
    • Create relationships between entities to better view the composition of complex mixtures, linking them as subcomponents and showing them as indented rows.
    • Get a better understanding of drug formulations by viewing the components that make up the mixture
    • Better define the composition of stereoisomeric mixtures
    • Analyze the differences between different battery electrolyte formulations

All versions of LiveDesign include:

  • Forms
    • Show data in a custom, dense arrangement with the Matrix widget
    • Search for compound IDs directly in the Compound Image widget
    • Set up forms more quickly, and identify columns to add to widgets more quickly, with an updated column shuttle
    • Collapse or expand all swimlanes in Kanban widgets using a menu option
    • Form widget titles automatically expand to show longer widget titles when a single widget is within a window
  • View any custom Experimental Metadata in the assay tooltips
    • Any metadata can be added to LiveDesign from corporate assay capture systems through the Data Integrator
  • Generic Entity – store, model, and analyze any kind of modality in LiveDesign
    • Purge and Overwrite experimental data
    • Append new data to a Lot
  • 3D Visualizer
    • View halogen bond and salt bridge interactions
    • Show Chain ID in the residue label
  • Significant improvements to streamlining integration of Maestro sessions and LiveDesign servers
    • Benefit from visual notice in Maestro of connected LiveDesign servers, user account recall, and automatic connection to LiveDesign with valid single sign-on
  • UI and UX Improvements
    • Independently size column groups and column headers in the LiveReport spreadsheet view
    • View column metadata in tooltip by hovering over a column title in the spreadsheet
    • View the true data point color in Plots after selecting data points
    • Expand and collapse the plot legend to avoid obscuring data points
    • Remove compound images from Plot tooltips
    • Resize columns in the Assay Data Viewer tool
    • Switch between row-per modes more easily
    • Use angle bracket and ampersand characters in formulas for manipulating strings, such as the split() formula
    • Importing compounds through a file and matching by IDs will now skip rows that do not have a match, and report which IDs failed to import

What’s Been Fixed

  • Cell coloring rules no longer extend beyond the edge of a tile
  • Data & Columns tree tooltips show the correct “View” button or “Edit” button for columns, based on each users’ assigned permissions
  • Date and Datetime display formats set within the Admin Panel now apply to all users with a role set to ‘User’
  • Editing a picklist Freeform column value in a Kanban widget will immediately update the tile’s location within the Kanban widget
  • Filter conditions for formula columns that include substructure images will correctly show the substructure images
  • Filter conditions on columns that have file attachments no longer show file IDs in the suggestion dropdown
  • Forms correctly show a pointer cursor instead of a grab cursor when viewing the form
  • Forms now support drilldown from Kanban widgets to Spreadsheet and Table widgets
  • Forms now support multiple instances of the same custom tool
  • Histogram and Pie plots permit creating a defined number of equally distributed bins
  • Histogram plots within Forms now permit defining custom bins
  • LiveDesign will start even if the preprocessor config includes unsupported fields
  • MPO desirability cell borders no longer show a color when the color is defined by a proxy value
  • MPO tooltips now appear in Form widgets that have a drilldown selection
  • Picklist Freeform columns now permit bulk copying dates from assay columns
  • Plots that use the Highlighted Substructure column will now show compound images when defining custom bins in Histogram and Pie charts
  • Plots with a regression line will correctly scale when the plot axes are converted to log scale
  • Plots with log axes no longer show negative values
  • Reagents with numeric IDs will correctly carry through their data when used within Reaction Enumeration
  • Scatter plots with three axes and many data points no longer show blank exports
  • Selecting a range of tiles in a Kanban widget, while holding down the shift key on the keyboard, will now only select the visible tiles within a vertical
  • The maximum number of data points allowed within a plot, set within the Admin Panel, now applies to all users with a role set to ‘User’
  • Toggling to different plot tabs in Forms will now show the correct data point tooltips
  • Typed text within filter conditions, that has not been saved, is now removed after selecting an option from the dropdown list



Training & Resources

Online Certification Courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Other Resources

Release 2023-1

Library Background

Release Notes

Release 2023-1

Small Molecule Drug Discovery

Platform Environment

Maestro Graphical Interface

  • Simultaneously mutate multiple selected nucleotides [2023-1]
  • Quickly select “Nucleic Acids” substructures in the Custom Sets editor dialogs [2023-1]
  • New Custom Presets functionality [2023-1]
    • Option to export subset of only selected presets
    • Expanded control with “Color by Element (Chain Name Carbons)” option
  • Improved “Maestro to PyMOL” capabilities [2023-1]
    • Improved discovery of “Send to PyMOL” option by moving it to the File menu
    • Option to include trajectory data in “Send to PyMOL”
  • Preference to “Keep center of rotation fixed while translating” now enabled by default [2023-1]
  • Project Table / Entry List improvements [2023-1]
    • Automatically scroll to the original row of a Shortcut Row entry with a double-click
    • Select rows where any of the included entries have atoms selected in the Workspace
  • Show/hide pharmacophore feature labels with the Annotations toggle [2023-1]
  • BioLuminate [2023-1]
    • Quickly select antibody-related segments such as CDRs, Fab, Fv and others with predefined selection sets
  • View, analyze and share molecular vibrations information with new Vibrations panel [2023-1]
    • Easy-to-use playback controls and tight interaction with the Workspace
    • Save frames from vibration frequency animation as 3D structures
    • Communicate with colleagues through exported movies of selected modes

Workflows & Pipelining [KNIME Extensions]

  • Support for KNIME (v4.7) added [2023-1]
  • Enhanced robustness of the Extract Properties node where new properties can now be included or excluded [2023-1]
  • The LigPrep node now reads setting files exported from Maestro [2023-1]
  • The new Protein Preparation Workflow node configuration panel is identical to Maestro’s [2023-1]
  • Improvements to LiveDesign Import and Export nodes [2023-1]
    • Move beyond ligands and proteins to import any 2D/3D structure into LiveDesign as generic entities
    • Import entire LiveReports into KNIME for analysis

Target Validation & Structure Enablement

Protein Preparation

  • Small peptides (< 200 atoms) can now also optionally be capped [2023-1]

Multiple Sequence Viewer/Editor

  • Use the Protein Family Alignment feature to align and annotate new sequences to a user supplied reference set for all protein families (beta) [2023-1]
  • Generate complement and reverse complement sequences for Nucleic Acid chains [2023-1]

Desmond Molecular Dynamics

  • Improvement in performance up to 1.17X (17%) in ns/day throughput realized from collaboration with NVIDIA. The largest speed improvements from running on modern GPUs with small to moderate sized systems [2023-1]

QM/MM (Qsite)

  • More robust and reliable minimizations from switching default minimizer from truncated newton to conjugate gradient [2023-1]
  • Added support for dispersion-corrected functionals including DFT-B3LYP-D3, DFT-M06-2X-D3, DFT-B3LYP-D3(BJ), DFT-M06-2X-D3(BJ), DFT-wB97X-D, and DFT-B97-D3 [2023-1]

AutoQSAR

AutoQSAR & DeepAutoQSAR

  • Normalize numeric additional features to eliminate instability in network training in case of very large or small values [2023-1]

Hit Identification & Virtual Screening

Shape Screening

  • Easily restart Shape GPU calculations from the command line [2023-1]

Lead Optimization

FEP+

  • Significant performance improvements of up to 1.4X in FEP+ perturbations/day realized from collaboration with NVIDIA. The greatest speed boosts are observed on larger core count GPUs with small to moderate sized systems [2023-1]
  • Improved interface usability when handling groups, including how values are applied to maps [2023-1]
  • Automatically calculate protomer/tautomer/conformer populations using Epik7 with fep_groups.py script [2023-1]

Quantum Mechanics

  • Easily hide and redisplay spectra in the Spectrum Plot interface [2023-1]
  • Added support for rSCAN, r2SCAN, and r2SCAN-D3(BJ) DFT functionals [2023-1]
  • Added support for thirty-four D4 dispersion corrected functionals [2023-1]

Semi-Empirical Quantum Mechanics

  • Switch from MOPAC7.1 to MOPAC2016 calculation engine for Semiempirical interface [2023-1]

Medicinal Chemistry Design

Ligand Designer

  • Design for ligand selectivity through visualization of binding site volumes accessible to only one of two receptors and identifying ligands that dock well into only one of two receptors (beta) [2023-1]

Biologics Drug Discovery

  • Perform simultaneous back mutations of multiple residues in Antibody Humanization using the CDR grafting workflow [2023-1]
  • Quickly select antibody-related segments such as CDRs, Fab, Fv and others with predefined selection sets [2023-1]
  • Connect data to structure in Residue Scanning where selecting residues in the Workspace now also selects the residues in the Residue Scanning table [2023-1]
  • ‘Crosslink Protein’ interface has been renamed to ‘Protein Linker Design’ to more accurately reflect its purpose. and now includes access to a choice of two loop library databases, one for constructing intradomain linkers and the other for inter-domain linkers [2023-1]

Materials Science

GUI for Quantum ESPRESSO

Product: Quantum ESPRESSO (QE) Interface

  • Quantum ESPRESSO: Improved scalability and versatility of NEB workflow [2023-1]
  • Quantum ESPRESSO: Support for RISM-3D (command line) [2023-1]
  • Quantum ESPRESSO: Dimer method for finding transition states (command line) [2023-1]
  • Quantum ESPRESSO: Option to apply Niggli reduction (command line) [2023-1]

Materials Informatics

Product: MS Informatics

  • Machine Learning Property: Boiling point prediction over a range of pressure [2023-1]
  • Machine Learning Property: Interactive prediction for up to 10 selected entries [2023-1]

Coarse-Grained (CG) Molecular Dynamics

Product: MS CG

  • Improved loading speed for a CG system in trajectory viewer [2023-1]
  • CG FF Builder: Warning from *.log for discrepancy in reduced density [2023-1]
  • CG FF Builder: Support for force constants with zero angles [2023-1]
  • CG FF Assignment: Improved UI for setting reduced density and cutoff distance [2023-1]
  • CG FF Assignment: Support for populating reduced density from the FF file [2023-1]
  • CG FF Assignment: Warning for CG particles with large differences in radii [2023-1]

Molecular Dynamics

Product: Desmond

  • Improvement in performance up to 1.17X (17%) in ns/day throughput realized from collaboration with NVIDIA. The largest speed improvements from running on modern GPUs with small to moderate sized systems [2023-1]

MS Maestro User Interface

  • Periodic boundary condition accounted for evaluating “within/beyond” ASL [2023-1]

MS Maestro Builders and Tools

  • Manipulate Cell: Option to shift origin [2023-1]
  • Meta Workflows: Module for building and running multiple connected workflows [2023-1]
  • Polymer: Support for monomers marked by Mark Head and Tail (command line) [2023-1]
  • Query Bonds: Zoom to a bond selected in a row from the panel [2023-1]
  • Structured Liquid: Expanded list of built-in lipids [2023-1]

Classical Mechanics

  • Droplet: Module to predict contact angle of water droplet on a given substrate [2023-1]
  • Evaporation: Workflow module to simulate evaporation with molecular dynamics [2023-1]
  • Molecular Deposition: Allow to request only one MD per iteration [2023-1]
  • Prepare for MD: Option to scale DPD systems based upon the force field [2023-1]
  • Prepare for MD: Additional post-processing for Martini 2.x (command line) [2023-1]

Quantum Mechanics

  • Complex Enumeration: Support for non-metal center in complex stability analysis [2023-1]
  • Macro pKa: Option to assign active atoms in the course of generating tautomers [2023-1]

Education Content

  • New Tutorial: Meta Workflow [2023-1]
  • New Tutorial: Water Droplet Contact Analysis [2023-1]
  • New Tutorial: Liquid Electrolyte Properties: Part 1 [2023-1]
  • New Tutorial: Liquid Electrolyte Properties: Part 2 [2023-1]

LiveDesign

What’s New in 2023-1

  • Project Overview Landing Page: View summarized landing page information
  • Vertical only Kanban: Create a Kanban view using a single picklist Freeform column
  • Forms
    • Use keyboard controls with the Compound Image widget to navigate from one compound to another
    • Define independent column widths for each widget
  • Generic Entity: Store Lot and Experimental data on any chemical, biological, or material matter with any representation
  • New enhancements to existing features, such as:
    • View the regression equation on scatter plots
    • Admins can log out users by removing their assigned Roles, or by specifying a specific username
    • Removing a single enhanced stereochemical AND group with the structure processor now defines the stereocenter as ‘undefined’, and previously would define is as an absolute stereocenter
    • Use advanced atom query features in substructure filtering
  • Performance Improvements
    • SAR analysis tasks are performed asynchronously and take less time to complete
    • The 3D visualizer is more responsive when large proteins are viewed

What’s Been Fixed

  • Models that returned a single value now show the full result unaligned with other columns
  • The 3D visualizer uses the high performance GPU on client computers to avoid crashes
  • Pasting multiple values into ID search will attempt to automatically identify the delimiter, or present an option to select the delimiter, by which to separate values
  • Limited Assay Columns are now included in Matched Molecular Pairs analyses
  • Pasting multiple values into Filters will attempt to automatically identify the delimiter, or present an option to select the delimiter, by which to separate values
  • File import receipts show a scroll bar for errors parsing SD files
  • Pinned plot tooltips in forms update the connecting line when the view is resized
  • The file import receipt now shows IDs from SD file title lines
  • Overlay lines in plots will now extend to the full plot dimensions
  • Automatically generated coloring rules for R-groups, Scaffolds, and String columns that were created through the plot interface will now appear in plots
  • Pinned tooltips now point to the correct data points in box plots
  • The radar chart legend now shows which compound IDs are out of range by hovering over the “Out of Range” entry in the plot legend
  • Multi-parameter optimization column dialogs appeared to allow unauthorized users to edit the definition, however any edits submitted were not saved. The dialog now shows all fields as disabled to unauthorized users.
  • LiveReports set to Read-Only no longer allow users to configure Tile View
  • Line charts no longer show R-groups as SMILES strings in the plot legend, and instead show images
  • Forms with many narrow widgets not longer show errors when editing the Form
  • Dragging to select multiple histogram bars will select all of the compounds within the bin

Training & Resources

Online Certification Courses

Level up your skill set with hands-on, online molecular modeling courses. These self-paced courses cover a range of scientific topics and include access to Schrödinger software and support.

Tutorials

Learn how to deploy the technology and best practices of Schrödinger software for your project success. Find training resources, tutorials, quick start guides, videos, and more.

Other Resources
